Optimise a Model

This guide walks you through the end-to-end process of adding, configuring, and compiling a model on the platform.

​

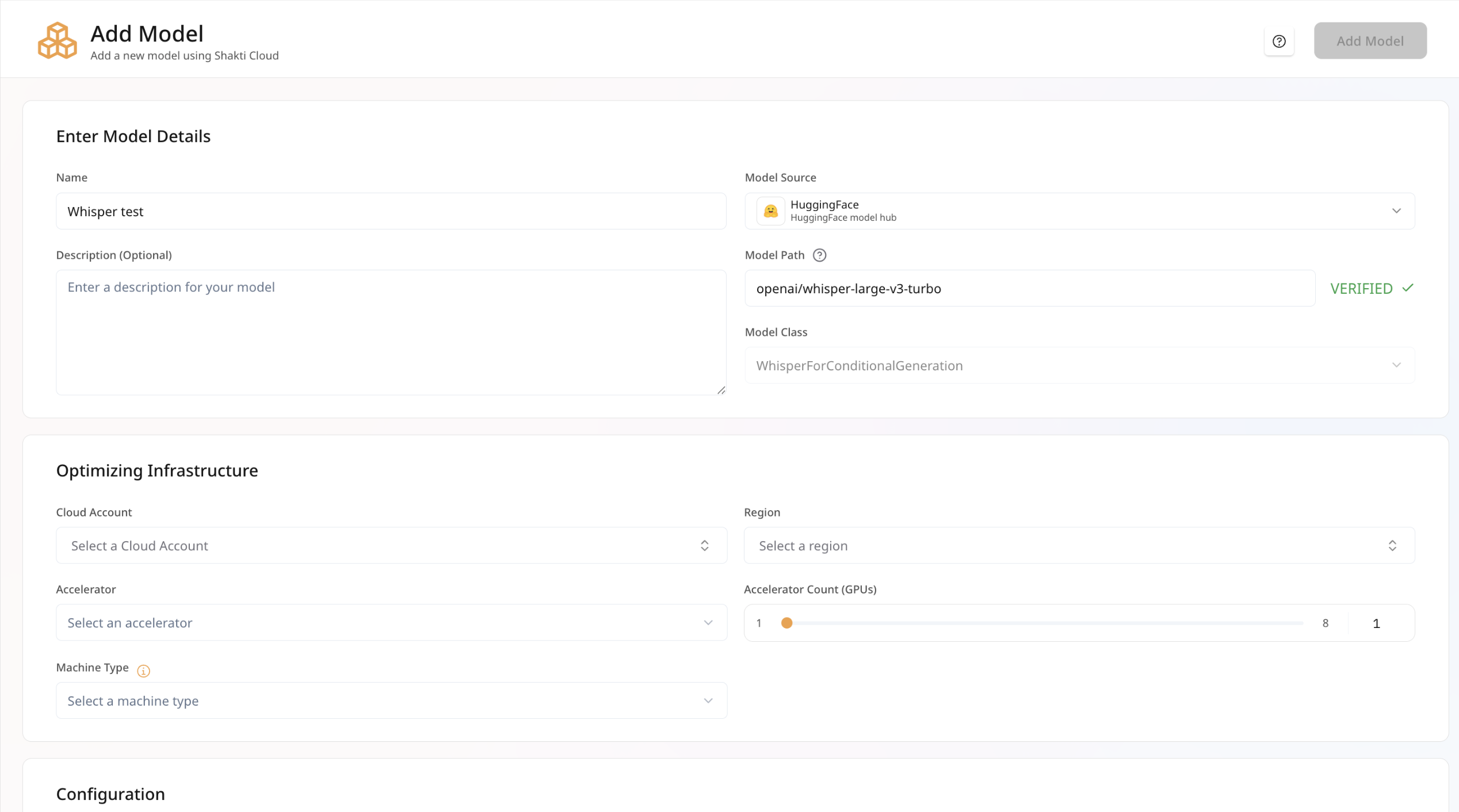

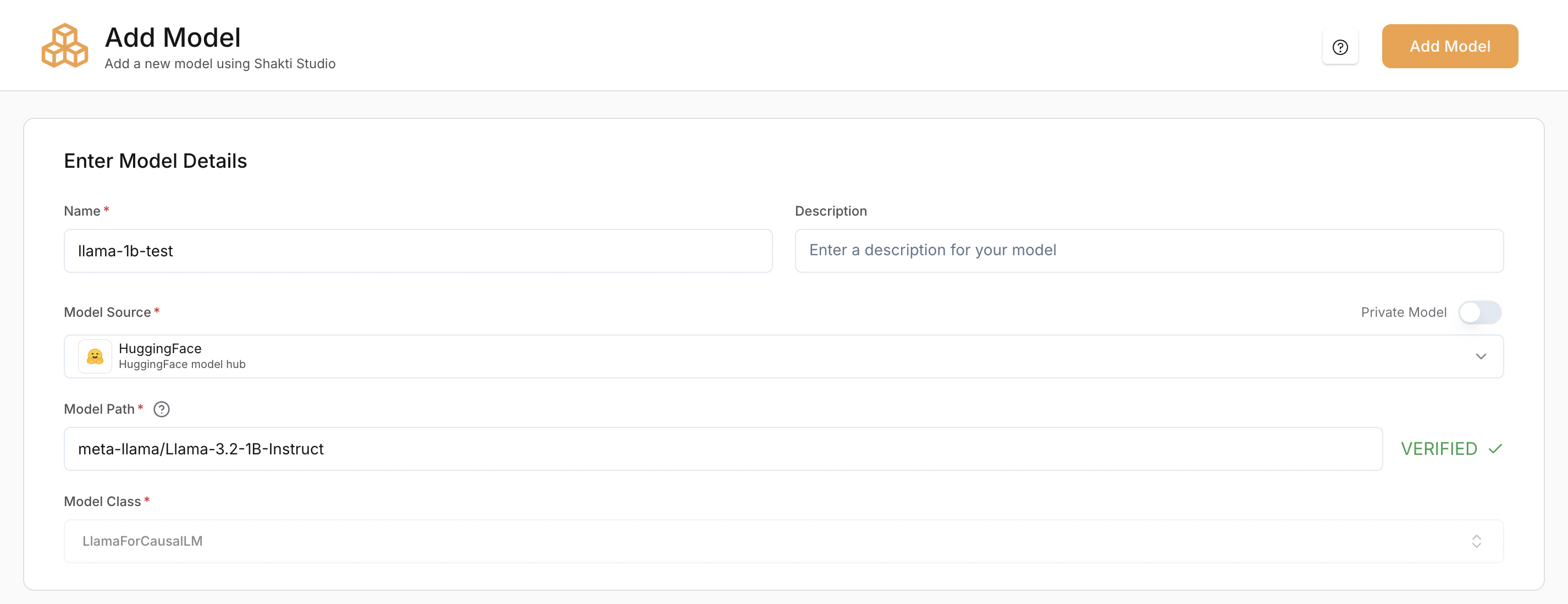

Enter Model Details

Navigate to Add Model to register a new model.

​

Name (Required)

A unique identifier for the model within the platform.

​

Description (Optional)

Short note about the model’s purpose.

​

Model Source (Required)

Specifies where the model artifacts are loaded from.

• Hugging Face (HF) – Load directly from the Hugging Face Hub
• Shakti Studio S3 – Load from an S3 bucket
• GCP GCS – Load from a Google Cloud Storage bucket
• Public URL – Load from a publicly accessible URL

If using Hugging Face, you can enable Private Model for gated or private repositories.

​

Model Path (Required)

The exact path to the model.

• Hugging Face: meta-llama/Llama-3.1-8B-Instruct
• AWS S3: s3://my-bucket/model/
• GCP GCS: gs://my-bucket/model/
• Public URL: https://<host>/model

The platform verifies the path automatically.

​

Model Class (Required)

Defines the pipeline or architecture class used to load the model.

• LlamaForCausalLM → LLMs
• WhisperForConditionalGeneration → Speech models
• FluxPipeline → Diffusion models
• CustomPipeline → Custom or non-standard pipelines

​

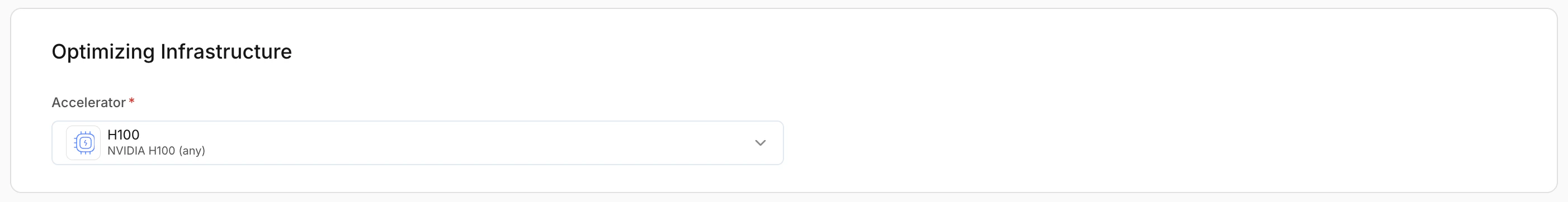

Optimising Infrastructure

This section determines on which GPU the model will be deployed. Shakti Studio provides a fully managed environment where infrastructure is provisioned automatically. Accelerator options:

• L40S – Recommended for most production speech workloads
• H100 – Best for high-throughput or low-latency deployments

---

​

Model-Specific Configuration

After Model Details and Optimising Infrastructure, the remaining configuration depends on the type of model you are adding. Different model types require additional or different settings:

• LLMs (Chat, Completion, Embedding)
• Diffusion Models
• Speech (Whisper) Models

---

​

LLMs (Chat, Completion, Embedding)

​

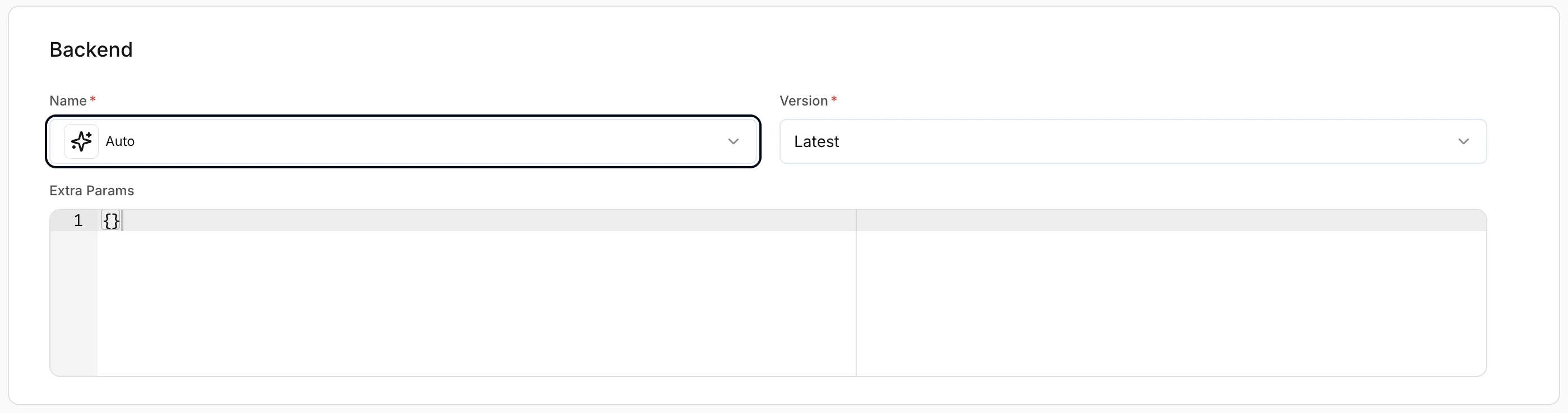

Backend Selection

Controls the inference backend used to serve the model. LLMs support multiple optimized backends.

• Auto – Platform selects the optimal backend automatically
• Latest – Recommended unless a specific version is required

For details, see the LLM Optimization Guide.

​

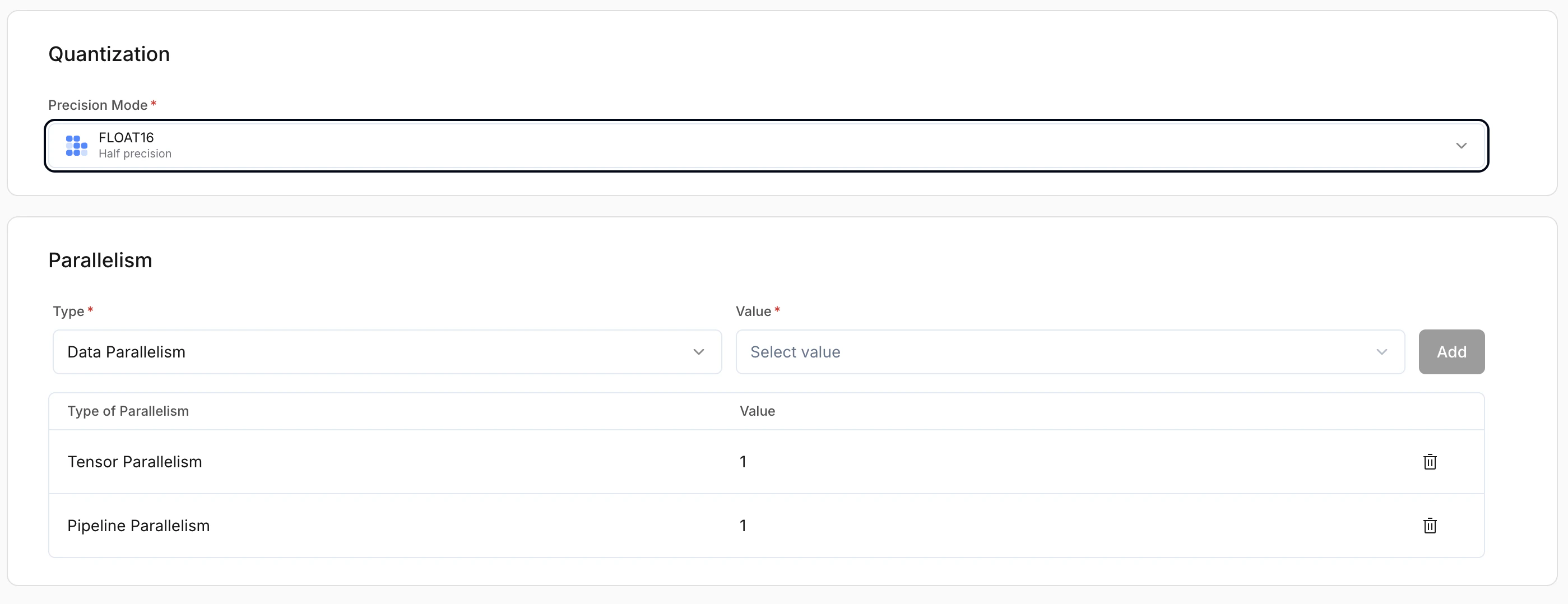

Quantization

Precision Mode (Required) controls how model weights are stored and computed. Choose the mode that balances accuracy, memory use, and throughput for your workload. Available precision modes:

• FLOAT16 – Half precision
• FP8 – 8-bit floating point
• INT8 – 8-bit integer
• INT4 – 4-bit integer
• BFLOAT16 – Brain floating point 16-bit
• FLOAT32 – Full precision
• AWQ – Activation-aware Weight Quantization
• MXFP4 – Mixed-precision 4-bit floating point

​

Parallelism

LLMs support:

• Data Parallelism – Replicates the full model across multiple GPUs; each GPU handles separate requests. Best for throughput and concurrent traffic.
• Pipeline Parallelism – Splits model layers across GPUs. Use when the model is too large to fit on a single GPU.
• Expert Parallelism – For Mixture-of-Experts (MoE) models; distributes experts across GPUs. Improves scalability and efficiency for MoE architectures.

​

Pipeline Task

Defines the task the model is used for.

• Chat – Conversational models
• Completion – Text generation
• Embedding – Vector generation models

This determines request/response formatting and runtime behaviour.

​

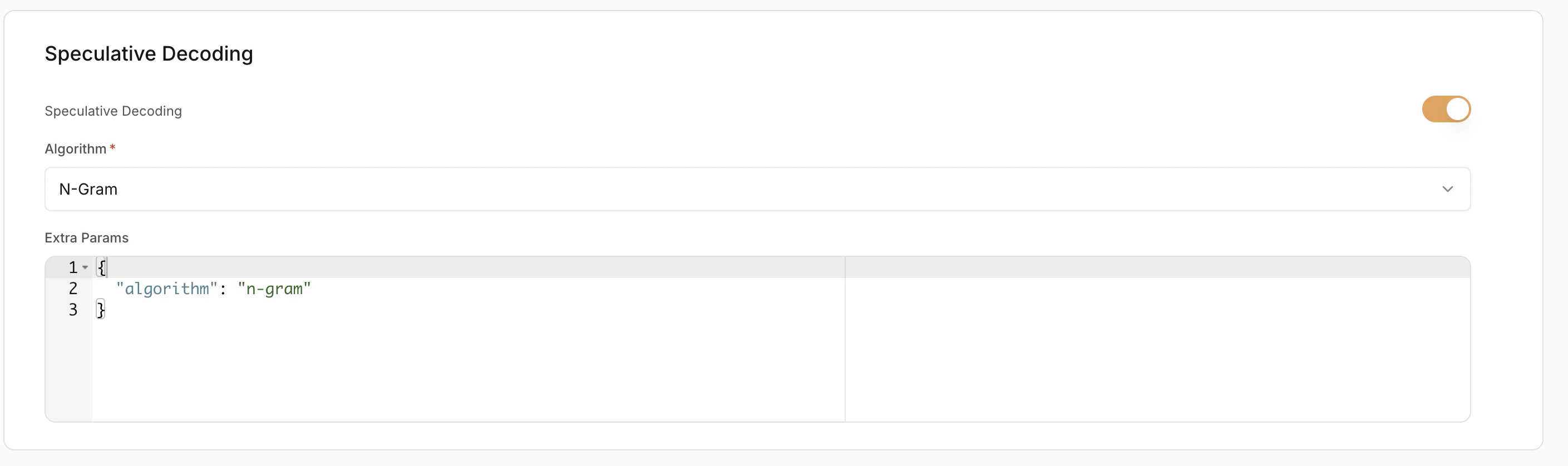

Speculative Decoding (Optional)

Improves latency by generating tokens using a draft strategy.

​

Extra Params

Advanced backend-specific configuration in JSON format. Leave empty unless you have custom tuning needs.

​

LoRA Configuration (Optional)

LoRA (Low-Rank Adaptation) allows loading fine-tuned adapters on top of base models.

• Enable LoRA – Toggle to enable or disable LoRA.
• LoRA Config Method:
  • Via LoRA List – Use pre-registered LoRA adapters
  • Via LoRA Repo – Load directly from a repository

Use Add LoRA Path to attach multiple adapters if needed. When adding a LoRA path:

• Source (Required) – Where the LoRA weights are stored (e.g. AWS (IAM Credentials))
• Secret (Required) – Credentials used to access the LoRA source
• Path (Required) – Path to the LoRA adapter location

---

​

Diffusion Models

​

Parallelism

Diffusion models support:

• Context Parallelism – Splits the input context or latent representation across multiple GPUs. Useful for high-resolution image generation and memory-intensive models.
• Fully Shared Data Parallelism – Replicates the model across GPUs; each GPU handles separate requests. Useful for high-throughput production and concurrent image generation.

​

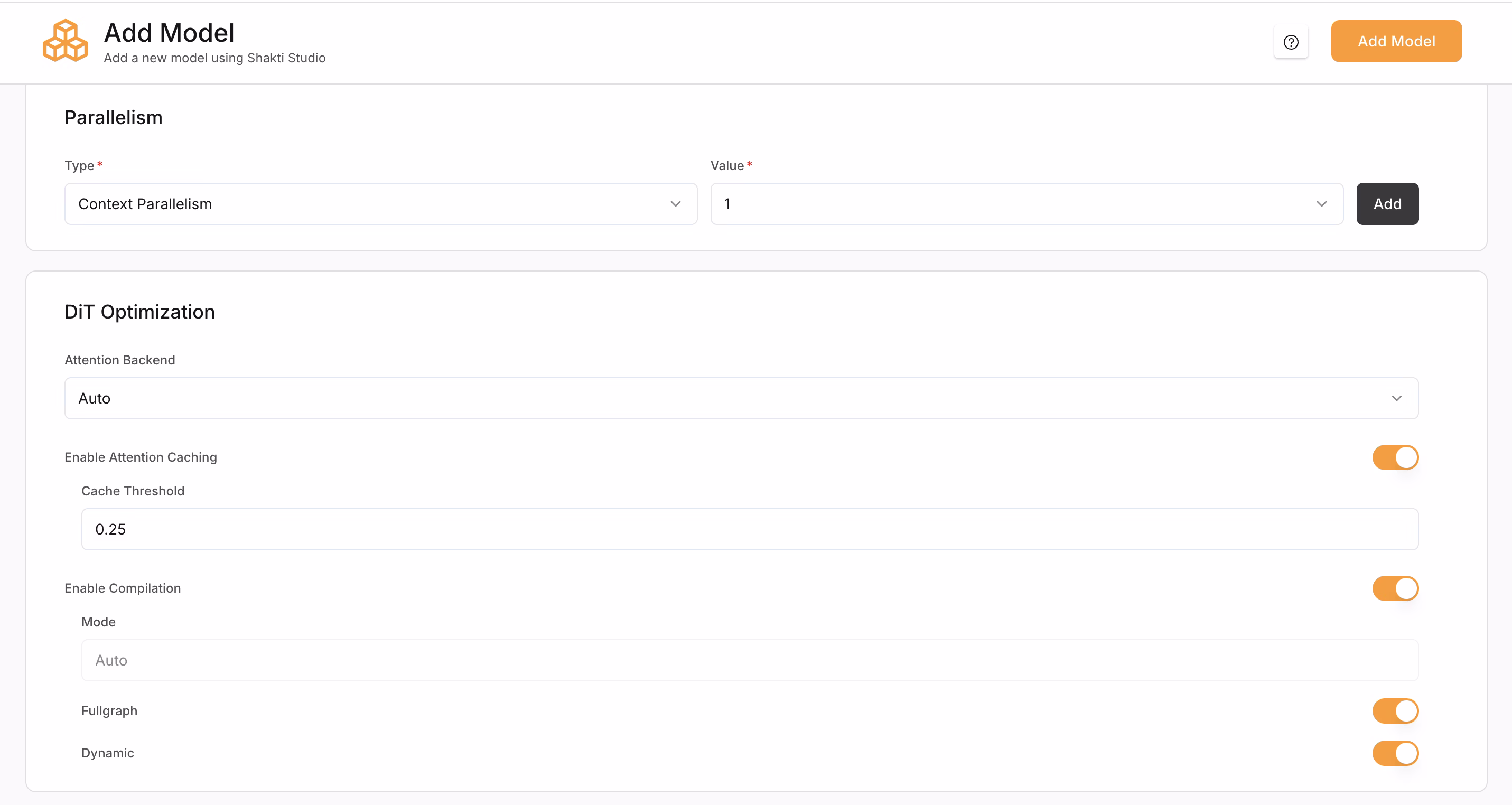

DiT Optimization

(Applies only to diffusion models.) Attention Backend – Selects the attention implementation during inference.

• Flash – Optimized attention for better performance
• Torch – Standard PyTorch attention
• Auto – Automatically selects the best option

​

Additional Optimisation Settings

• Enable Attention Caching – Caches attention states to reduce repeated computation and improve speed.
• Cache Threshold – Controls when caching is applied. Default: 0.25. Higher values improve inference speed but may reduce output quality.
• Enable Compilation – Compiles the model graph for faster inference.
  • Fullgraph – Compiles the entire model for maximum performance
  • Dynamic – Supports variable input shapes

---

​

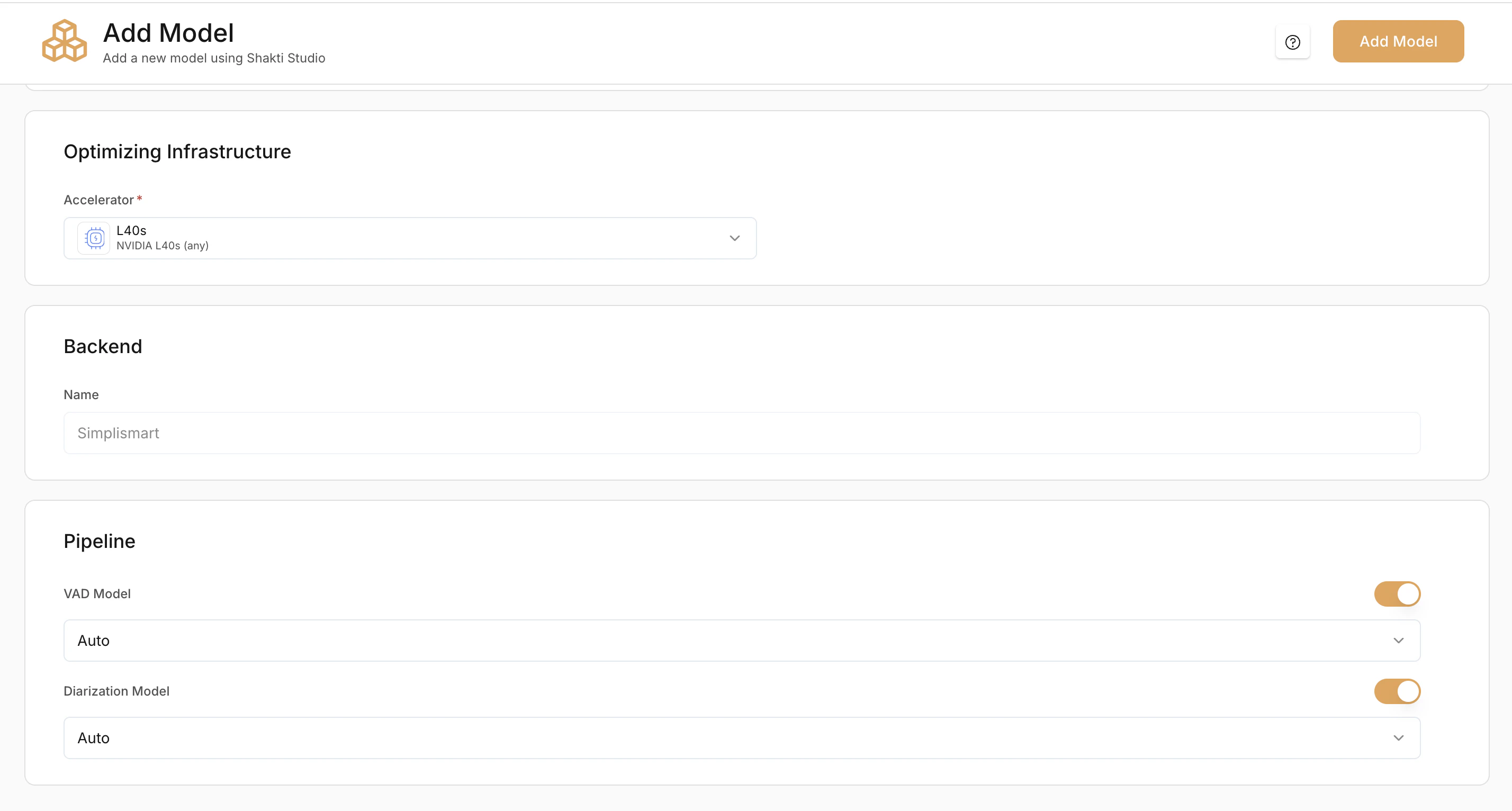

ASR (Speech) Models

​

Optional Pipeline Add-ons

Voice Activity Detection (VAD) Model

Detects speech segments and removes silence before transcription. VAD options:

• Auto – Platform selects the best VAD
• Silero – Lightweight and fast VAD model
• Frame – Frame-based detection

Diarization Model (Optional)

Separates and labels different speakers in the audio.
